Getting a Feel for the Data

Starting to understand the data we are working with may not require a computer. Simple diagrams and maps can be very useful in this stage to understand the relationships and information provided in a dataset. To get started, it’s valuable to model the data and begin the process of mapping terms to DwC vocabulary. It’s also valuable to consider what core and extension tables you can or might want to use. Reference the OBIS manual for information and guidance on core and extension tables.

Modeling the Data

Modeling the data and the relationships may be essential in understanding more complex datasets or those with multiple, related tables. This can be done with simple hand drawn diagrams or computer-generated diagrams, like mermaid diagrams.

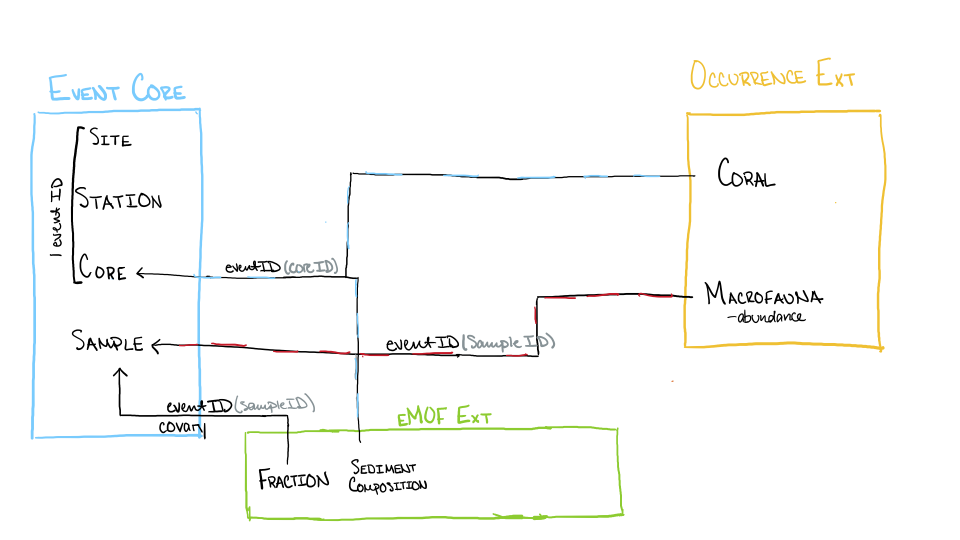

Schematic showing the relationships of different variables across three tables — Hand-drawn data visualization of relationships, with light grey text indicating variable names provided by the data collectors, Image by Kylie Hollis, License CC0

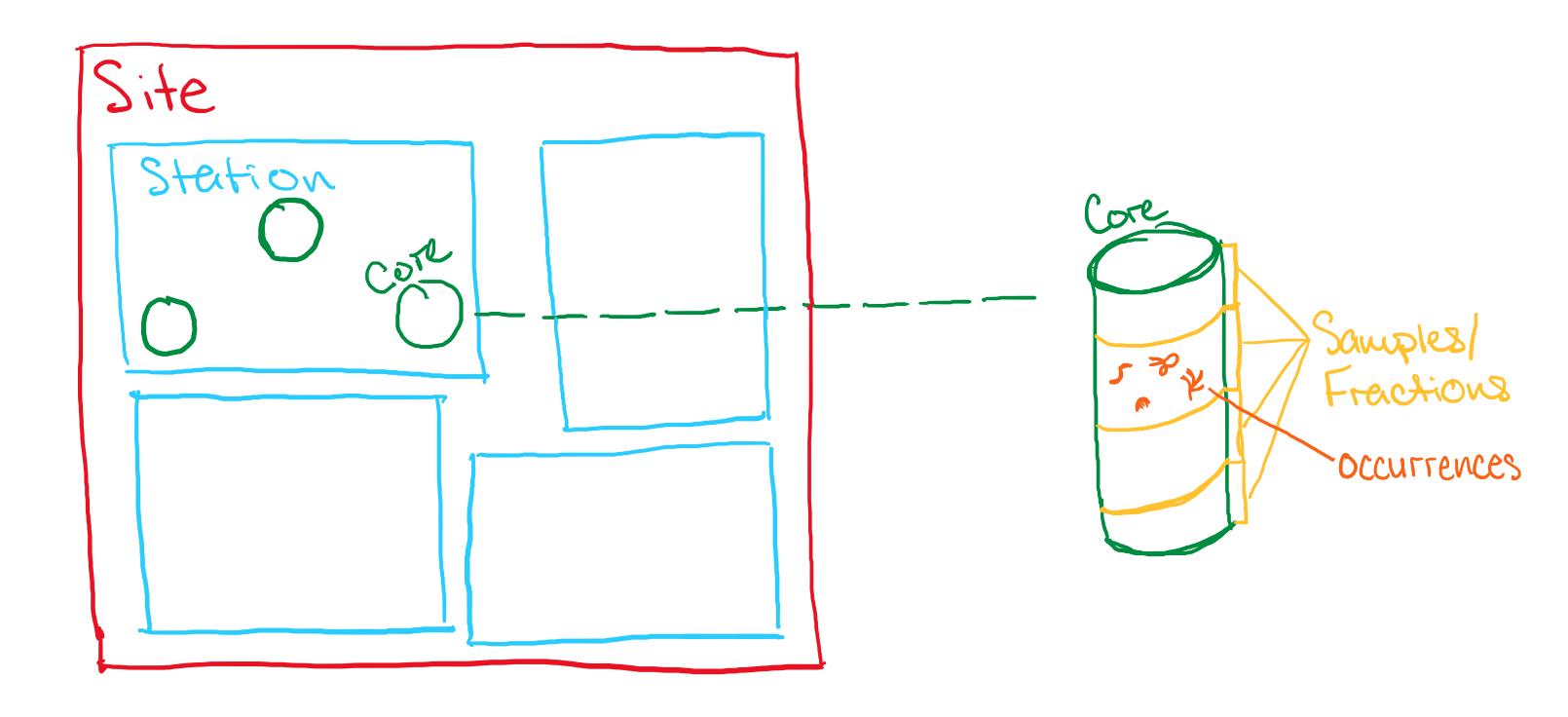

A hand-drawn diagram showing how the events and samples are nested within each other — Another hand-drawn representation of the relationships within and between events and occurrences, Image by Kylie Hollis, License CC0

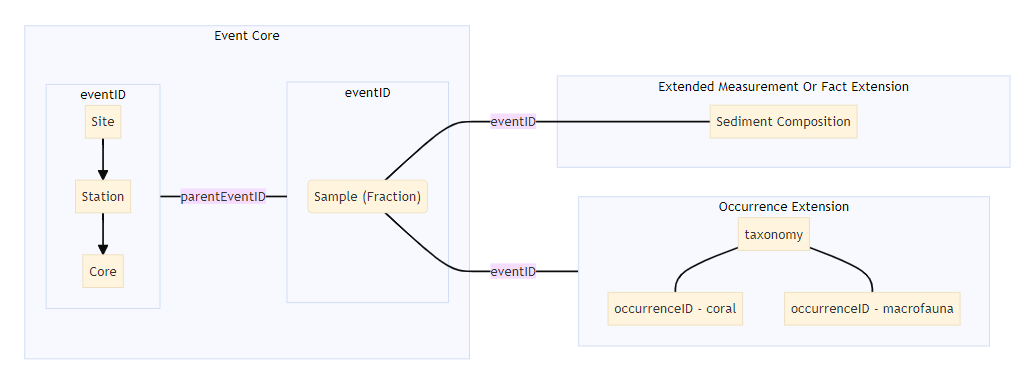

A computer-generated mermaid diagram showing the same relationships between variables in different tables — Mermaid diagram visualization of the same data, Image by Steve Formel, License CC0

Mapping to Darwin Core

Once we have a better grasp on the relationships in our data and what DwC core and extensions we might use, choosing which DwC terms to use becomes easier. Going through each column, we will need to determine what DwC terms are most appropriate and if term relationships are 1:1, 1:many, many:1, or 1:0, which will be valuable in wrangling the data.

Let’s try to say that more simply. In the data on ScienceBase, there are csv files with column headers. We’re going to choose Darwin Core terms to rename columns (when we can) or form new columns (e.g. concatenation of columns), when needed.

Examples

Term in ScienceBase data	Term in Darwin Core
`DateCollected`	`eventDate`
`Latitude`	`decimalLatitude`
`Longitude`	`decimalLongitude`

While a computer is not required here, it will be useful to have access to DwC vocabulary pages to reference at this point in this process.

This quick reference guide published by TDWG should be at your side during mapping: https://dwc.tdwg.org/terms/. It is never expected that you should know all the Darwin Core terms, but repeated use will help you remember those which are required by OBIS/GBIF and which ones most often apply to your work.
The documentation for the DwC extensions is not as friendly looking, but if you dig in, it should make sense relatively quickly. GBIF publishes these here: https://rs.gbif.org/extensions.html.
